$4,804.00
Our most popular fertigation solution, the MacRoy G 110, is built for medium to high-volume applications of fertilizer and other liquid inputs. With a wide operating range of 11 to 110 gallons per hour, a rugged, season-after-season construction, and a five-year drive unit warranty, the MacRoy G 110 delivers dependable performance where it counts.
Patented Ultra Mister Mist’r filter assembly
Protects pump, plumbing, and connections from foreign objects.

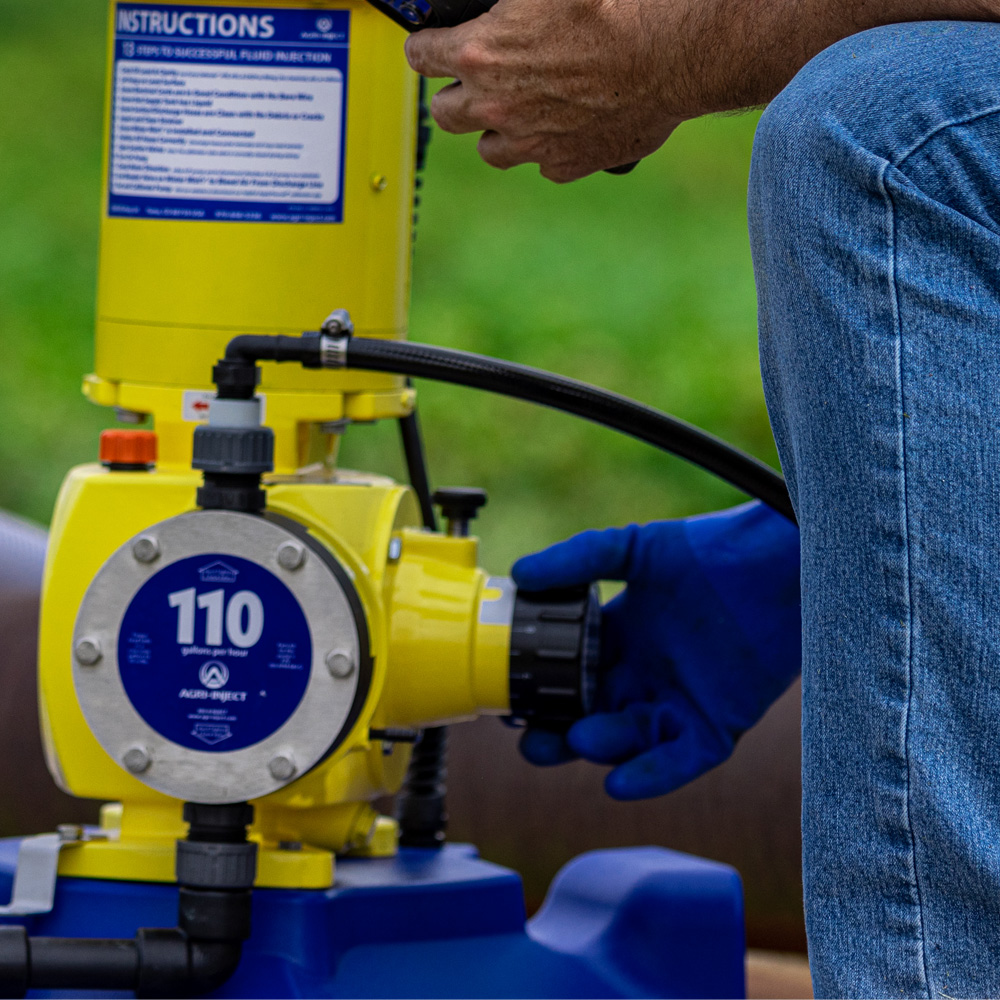

Large, easy-to-read dial
Lets you adjust flow quickly and simply while the pump is running. Can be locked in position to maintain a constant flow. Precision stroke adjustment can be operated while in use. Steady-state accuracy is approximately 2% of full capacity over the 10-to-1 turndown ratio.

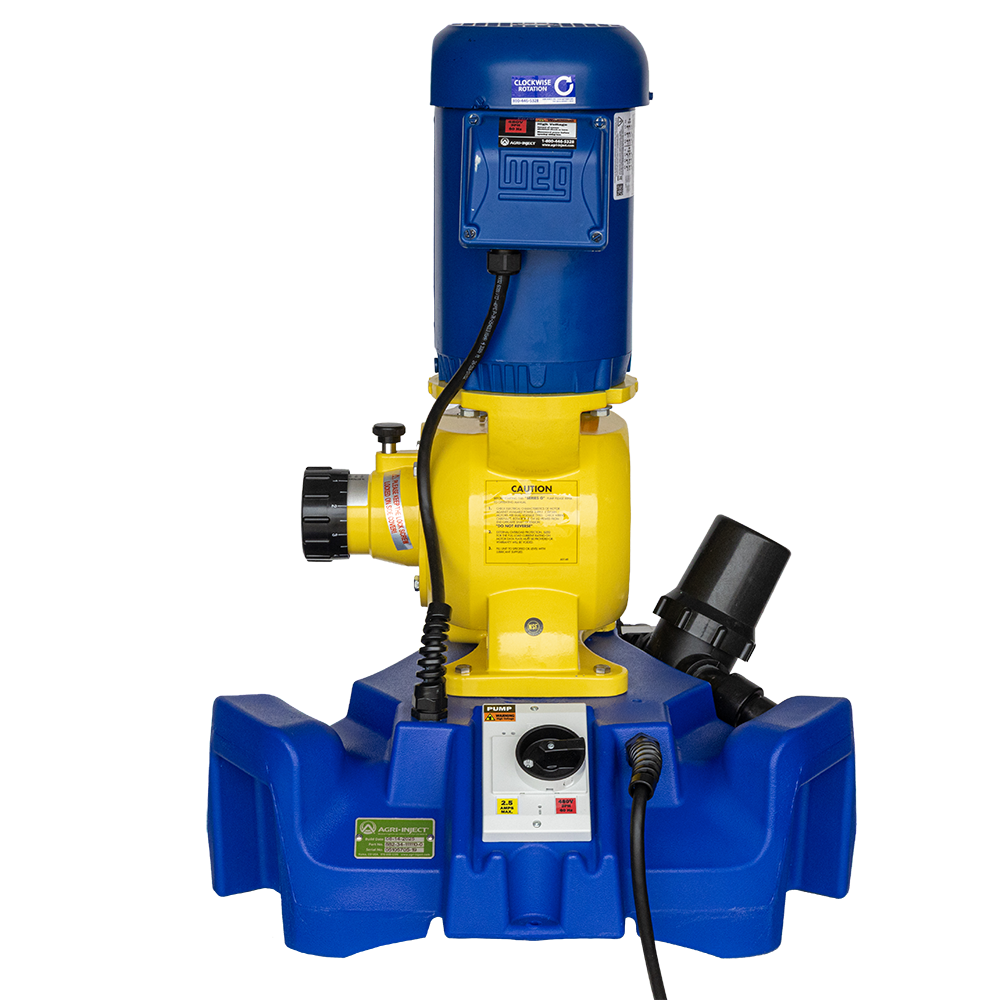

The control switch
Is sized specifically to each motor and provides overload protection. The switch enclosure is NEMA 4 rated and fully integrated into the base.
The MacRoy G system includes a rugged, chemical-resistant NOMAD base that keeps the pump off the ground and stable, with dual lifting handles for easy transport. Each MacRoy G system comes with a 15-foot weatherproof power cord (cord end not included).

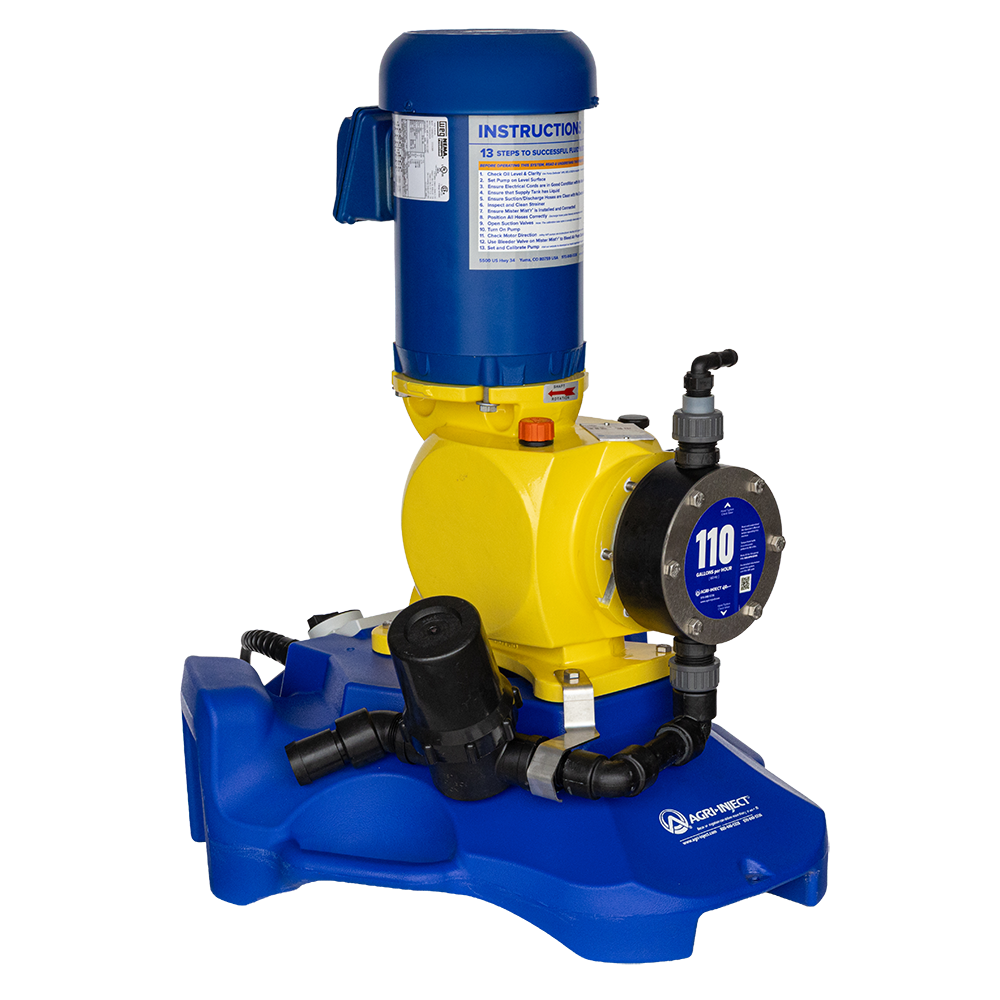

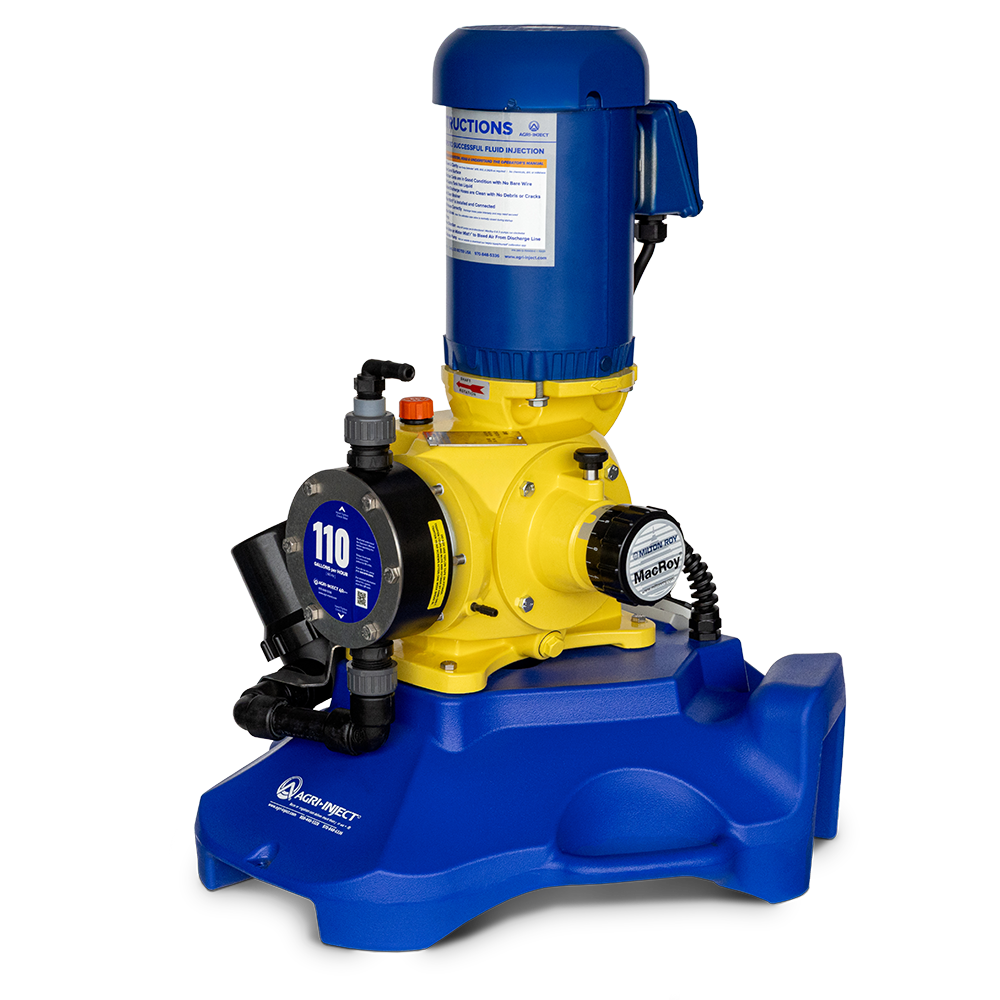

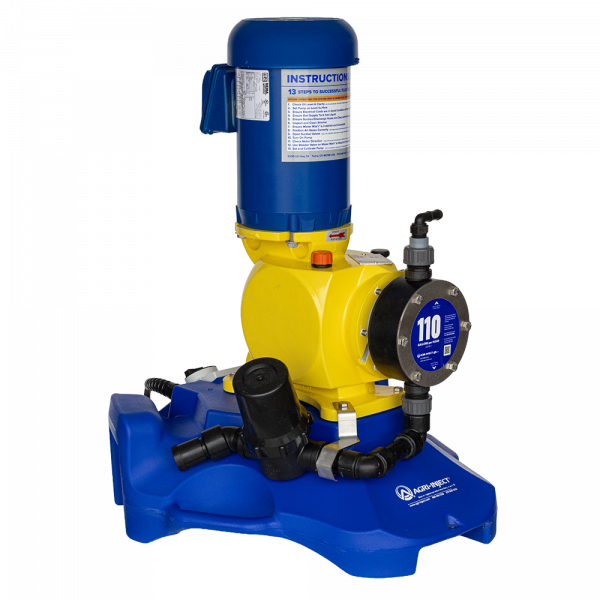

MacRoy G Series Fertigation Pump
Control Switch With Built-In Motor Overload Protection
Strainer Assembly on the Suction Input
12-Foot Rugged 1/2″ Discharge Hose With Clamps
Mister Mist’r and Bleeder Assembly With a 1/2″ Hose Barb Fitting
Flow Range: 11 to 110 GPH (42 to 416 LPH), 10-100% turndown
Strokes per Minute (60 Hz): 173
Maximum Pressure: 150 PSI (10.34 bar)
Wetted Materials:
Head: Polypropylene (PP)
Valves: PVDF body and seat, Ceramic balls
Diaphragm: Teflon
O-Rings: Viton
Motor:
Power: 1.0 HP
TEFC, 56C frame, clockwise rotation
Current Draw (Full Load): 1.8 A
Oil Capacity: 3 quarts (Pump DEFENDER™ 95G)
Suction Hose Size:
Up to 25 ft: 1.5″
25-35 ft: 2″
Discharge Hose: 1/2″ braded PVC, 12 ft
Dimensions: 28″ x 21″ W x 23″ D
Shipping Dimensions: 36″ x 22″ x 25″ (boxed with foam)
Weight: Complete (97.6 lbs) Boxed (111.4 lbs.)
