mRoy AP/B Series Fertigation System - Image 2

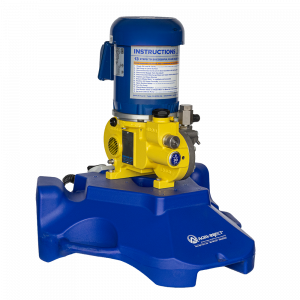

mRoy AP/B Series Fertigation System

Complete, 480V AC 3-Phase

The A30 fertigation system is Agri-Inject’s lighter-weight, lower-volume injection solution, trusted worldwide for the accurate, reliable application of fertilizers and crop inputs through center-pivot and other pressurized irrigation systems. With a flow range of 3 to 30 gallons per hour, the A30 offers a cost-effective way to apply precise amounts of fertilizer and crop protection products at precisely the right times throughout the growing season.

*Turnkey system includes all major system components. Electrical cord end and suction hose not included due to site-specific requirements.

Part No: 882-34-111030-0

$4,062.00 Save $214.00

Qualifies for FREE Shipping!

5-Year Pump Drive Warranty

Free Shipping on All System Orders

Turnkey System Ready to Deploy

Description

The A30 fertigation system is Agri-Inject's lighter weight, lower volume injection solutions, trusted worldwide for accurate, reliable application of fertilizers and crop inputs through center pivot and other pressurized irrigation systems. With a flow range of 3 to 30 gallons per hour, the A30 offers a cost effective way to apply precise amounts of fertilizer and crop protection products at precisely the right times throughout the growing season.

System Specifications

Select a model to view system specifications.

Product FAQs

End User Warranty

Click HERE for the End User Warranty

Operating Manual

Click HERE for the Operating Manual

Quick Start Guide

Quick Start Overview
This overview is intended to help operators understand the basic startup flow of the mRoy AP/B systems. It is not a substitute for the Agri-Inject Operating Manual. Always refer to the Operating Manual for complete installation, safety, calibration, and operating instructions.

Before starting, confirm that the system is properly mounted and secured, the Mister Mist’r® injection quill and discharge plumbing are correctly installed, and all required safety devices and interlocks are in place. Ensure the irrigation system is operating normally and fully pressurized before turning the injection pump on.

Prime the pump according to the Operating Manual to remove air from the suction and discharge lines. Once primed, set the pump output using the adjustment knob, based on the desired application rate.

Calibration may be performed using the ApplyYourself® app or one of the calibration methods outlined in the manual. After setting the pump, start the irrigation system and then switch the injection pump on. Verify proper operation by observing the discharge hose pulse and confirming product movement at the Mister Mist’r® bleeder. Periodically recheck operation during the irrigation cycle to ensure the system is injecting at the expected rate.

For shutdown, allow the pump to complete injection, then follow the post-operation and flushing procedures outlined in the Operating Manual. Proper maintenance and seasonal storage procedures are critical for long-term performance and reliability.

Shipping

The product ships via UPS or FedEX ground in a dedicatd shipping carton designed to protect the system during transit.

Dealer Support and Checkout

Agri-Inject's e-commerce platform is intended to support and strengthen our dealer network, not replace it. When purchasing a system online, customers are asked to select a preferred Agri-Inject dealer from a list pre-sorted by proximity to their location. This ensures you have a knowledgeable local resource for installation guidance, parts, service, and ongoing support throughout the life of your system.

What Sets This System Apart?

Easily Accessible Filter Assembly

This protects the pump, plumbing, and connections from foreign objects and contaminants that can affect performance.

Exclusive Startup Kit

Every mRoy AP/B system ships with a custom Agri-Inject Startup Kit designed to make installation, setup, and operation easier and safer from day one.

Precision Fertigation (Spoon Feeding)

Fertigation allows nutrients to be applied in controlled, incremental amounts through the irrigation, helping match nutrient delivery to crop demand throughout the season.

Mister Mist'r® Injection Quill

Agri-Inject's original injection quill design safely introduces product into the injection stream, promoting rapid dispersion at the injection point.

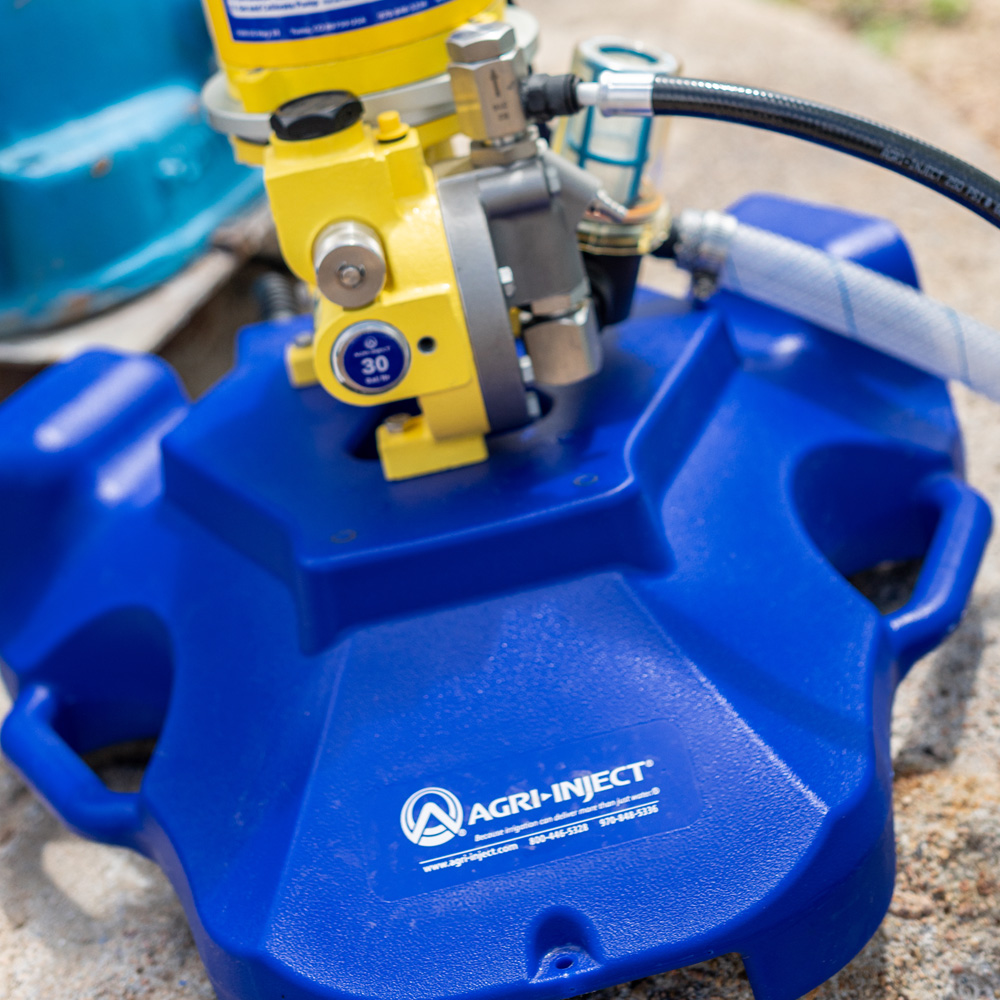

Easy-to-Handle

The A30 is a robust, easy to handle system offering a reliable means of caring for your crops. The custom-molded support base has two handles for ergonomic moving and carrying.

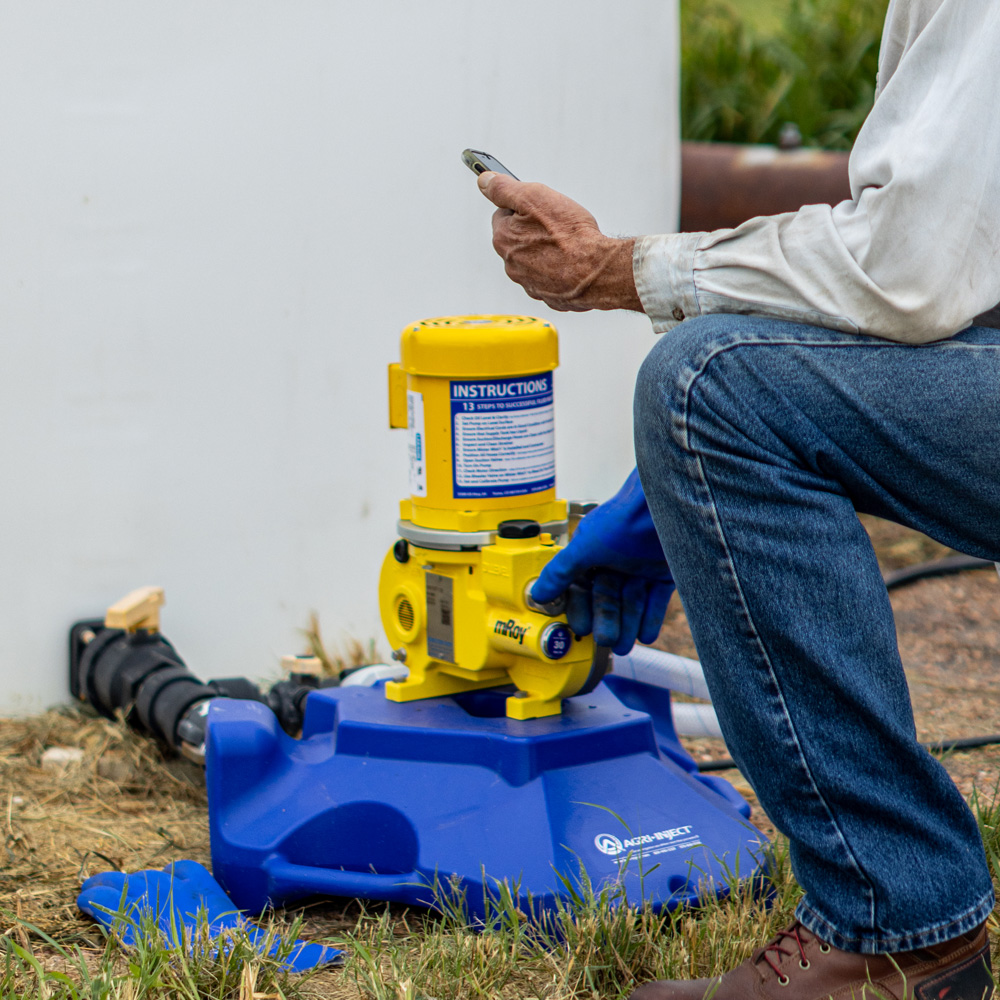

On-the-Go Rate Adjustment

Injection output can be adjusted while the system is running, allowing fine-tuning without stopping irrigation or interrupting the application.

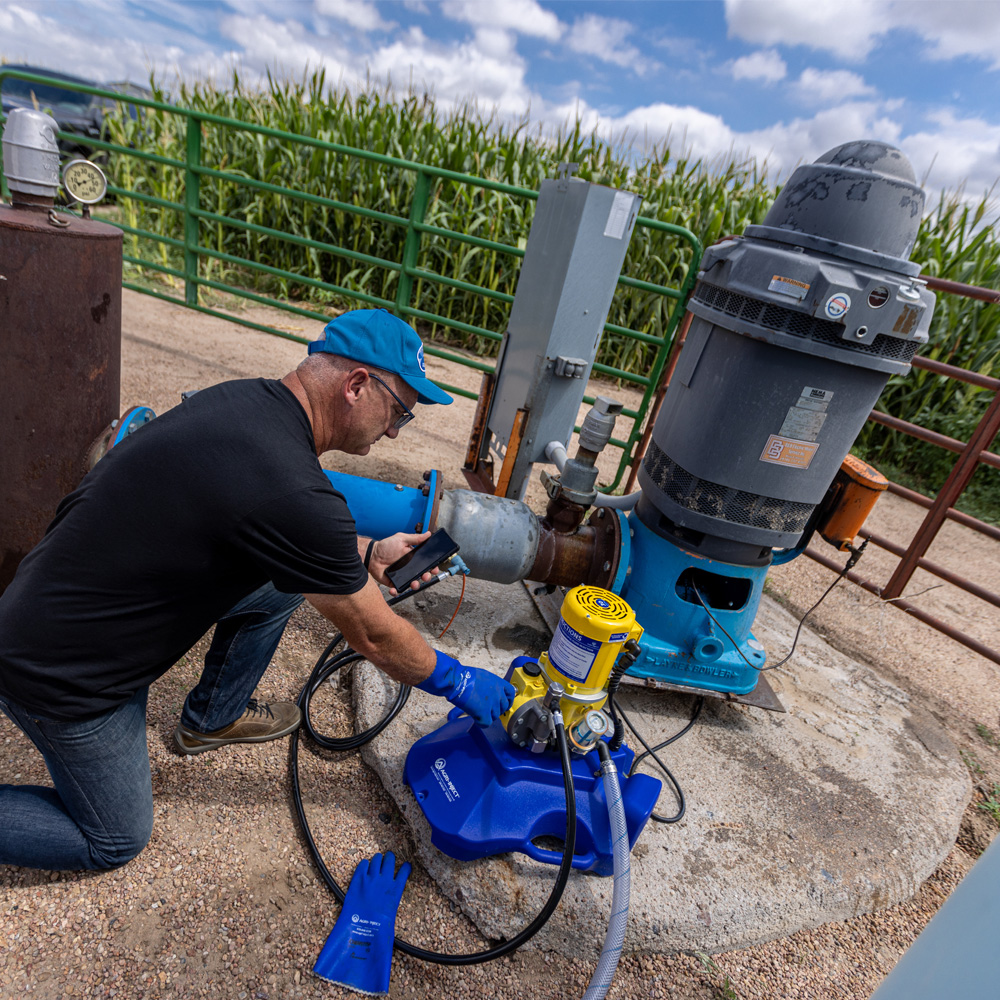

Apply Yourself® App Integration

Agri-Inject is the only manufacturer in the industry offering a dedicated, free, and easy-to-use mobile app to help simplify setup, calibration, and operation.
