AGRI-INJECT CHEMIGATION PRODUCTS

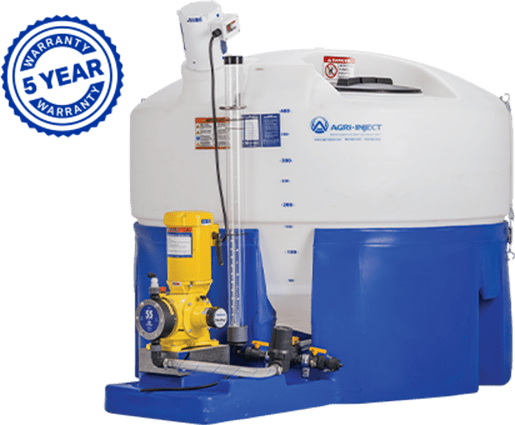

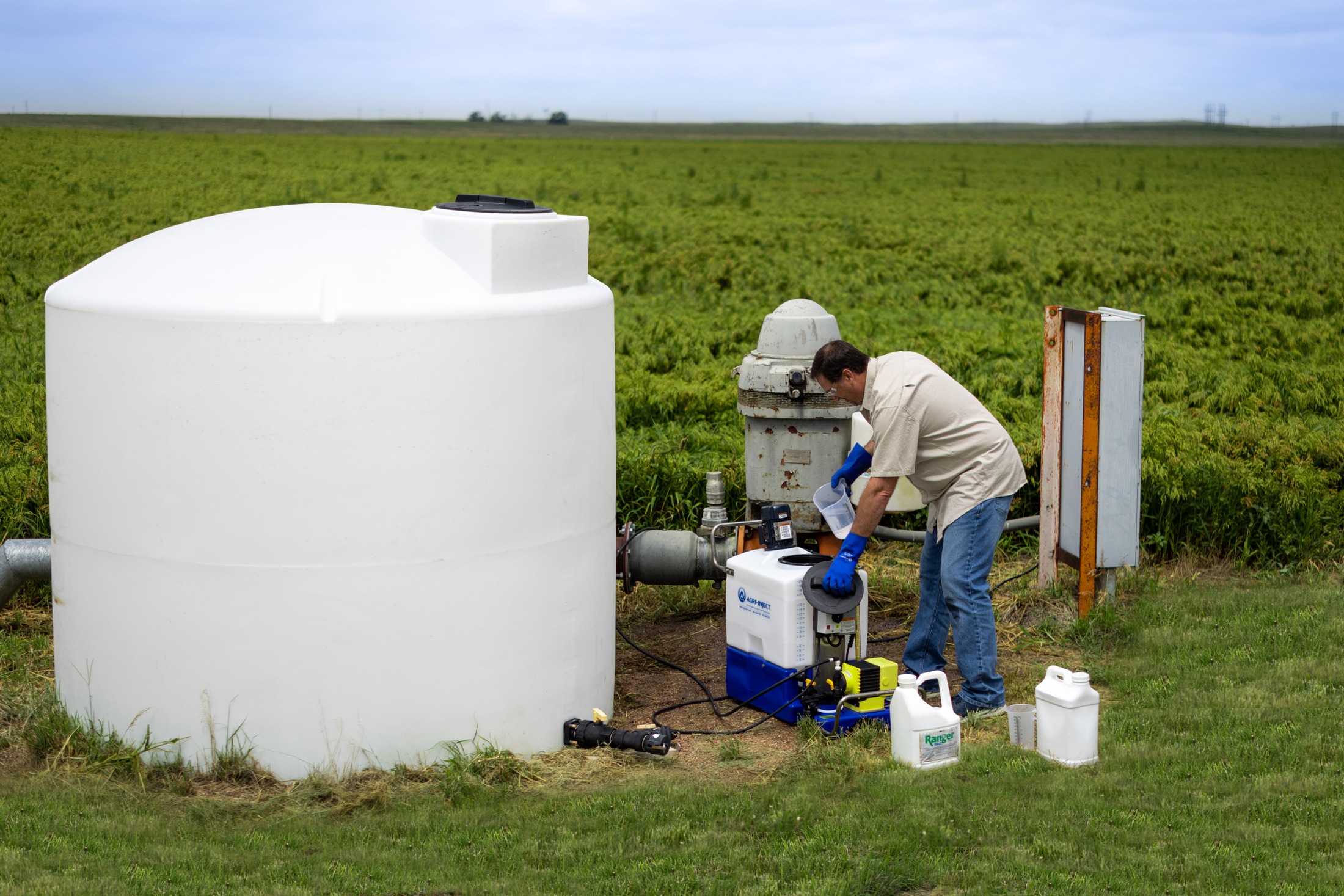

Large Capacity Chemigation

For Bigger Jobs and
Heavier Products in Suspension

Lower costs… Higher yields… Timely applications… Time savings. That’s the winning formula chemigation delivers to growers across the nation and around the world.

Designed for applying fertilizer, herbicides, insecticides, fungicides and other liquid products to a wide range of crops, an Agri-Inject® chemigation injection system can be fitted to most center pivot, linear sprinkler, drip and solid set irrigation systems. Choose from a wide variety of models designed to fit every application and every farm. Standard Chemigation Systems offer capacities of 70, 110 and 200 gallons, while large capacity systems feature tanks up to 600 gallons.

Key Features

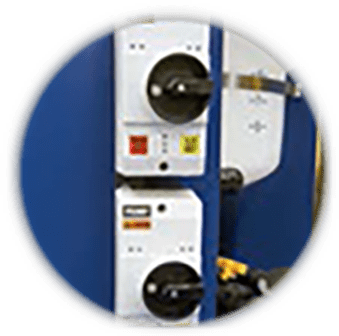

Features single or dual configuration

motor starter protection preset to FLA of each motor.

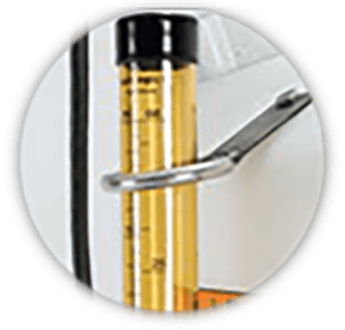

The Calibration Tube

is constructed of impact and chemical resistant, UV-stable material. The tube features precise, easy-to-read markings in ounce and millimeter units.

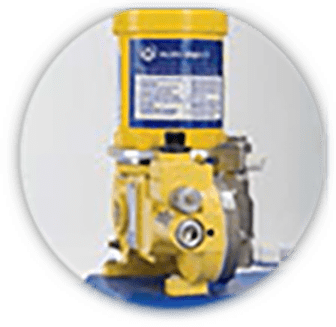

Comes standard with mRoy or MacRoy Pumps,

the most accurate, reliable pumps available.

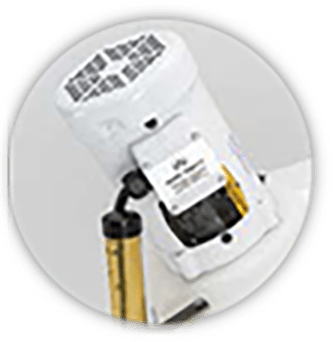

A dedicated agitation motor

ensures complete mix of chemical prior to injection into the irrigation system. Our large positive lock tank lid provides convenience when refilling the system.

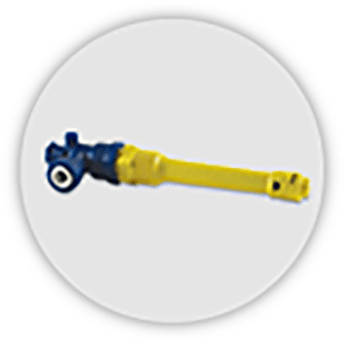

The patented Ultra Mister MIst'r®

has a four-way spray that effectively atomizes the inject product immediately for even distribution throughout the irrigation water flow.

Easily fitted to most center pivot, linear sprinkler, drip and solid set

Keeps even the heaviest materials in suspension for uniform application

Powerful pump and agitation system for high performance and long life

Agitation is standard on all sizes

Available in three phase, single phase and 12-volt DC, and most international electrical configurations

Environmentally safe

Utilizing a high quality fluid injection pump enables you to precisely provide what your crop needs while reducing the environmental impact. With Agri-Inject equipment, there are other benefits of reduced drift and reduced labor and energy costs. Agri-Inject also offers containment options to provide even further assurance of environmental safety.

Economical to operate

Lower operating costs at high volumes make the MacRoy Series D especially effective for applying fertilizer, chemicals, and other concentrates through high acreage pivot irrigation systems.

Future of precision agriculture

Today we’re on the doorstep of dynamic growth of precision farming within the global agricultural industry. Agri-Inject products are perfectly in sync with precision agriculture. They are the cost effective way to apply precise amounts of fertilizer and crop protection products at precisely the right times during the growing season. That’s a sound “precision strategy” for improving yields and ensuring crop health for many years to come.

What our clients say...

“They’re much easier to calibrate and you don’t have to shut down the system to calibrate the micrometer with Agri-Inject. ...we definitely prefer the Agri-Inject models. They’re just easier to use.”

Chuck Spytex,

Othello, Washington

Product Models

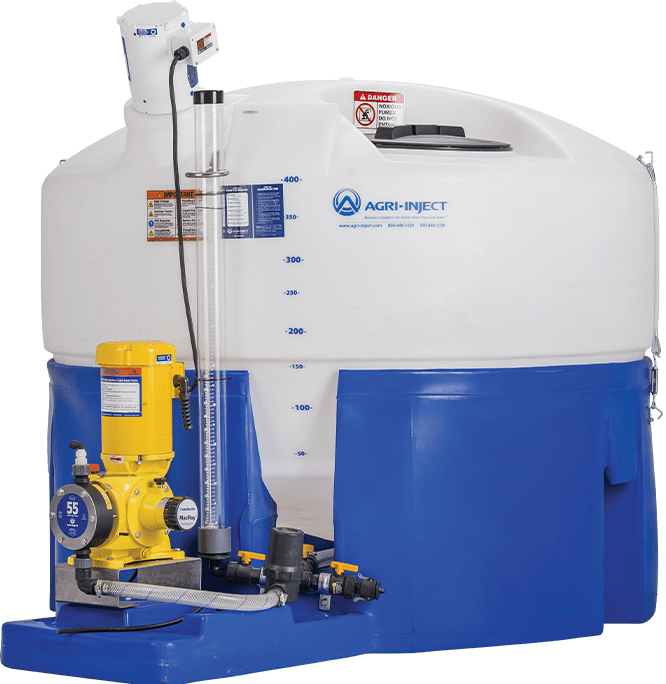

300 Gallon Large Capacity Injection System

Common Uses

Herbicides, Fumigants, High Rate Fungicides, Non-Solubles, Fertilizers

Features

300 gallon tank, Heavy duty support base

Specs/Options

Liquid Capacity: 300 US gallon
Dimensions: 65" wide x 85" long x 52" tall
Weight: 325 lbs. without pump

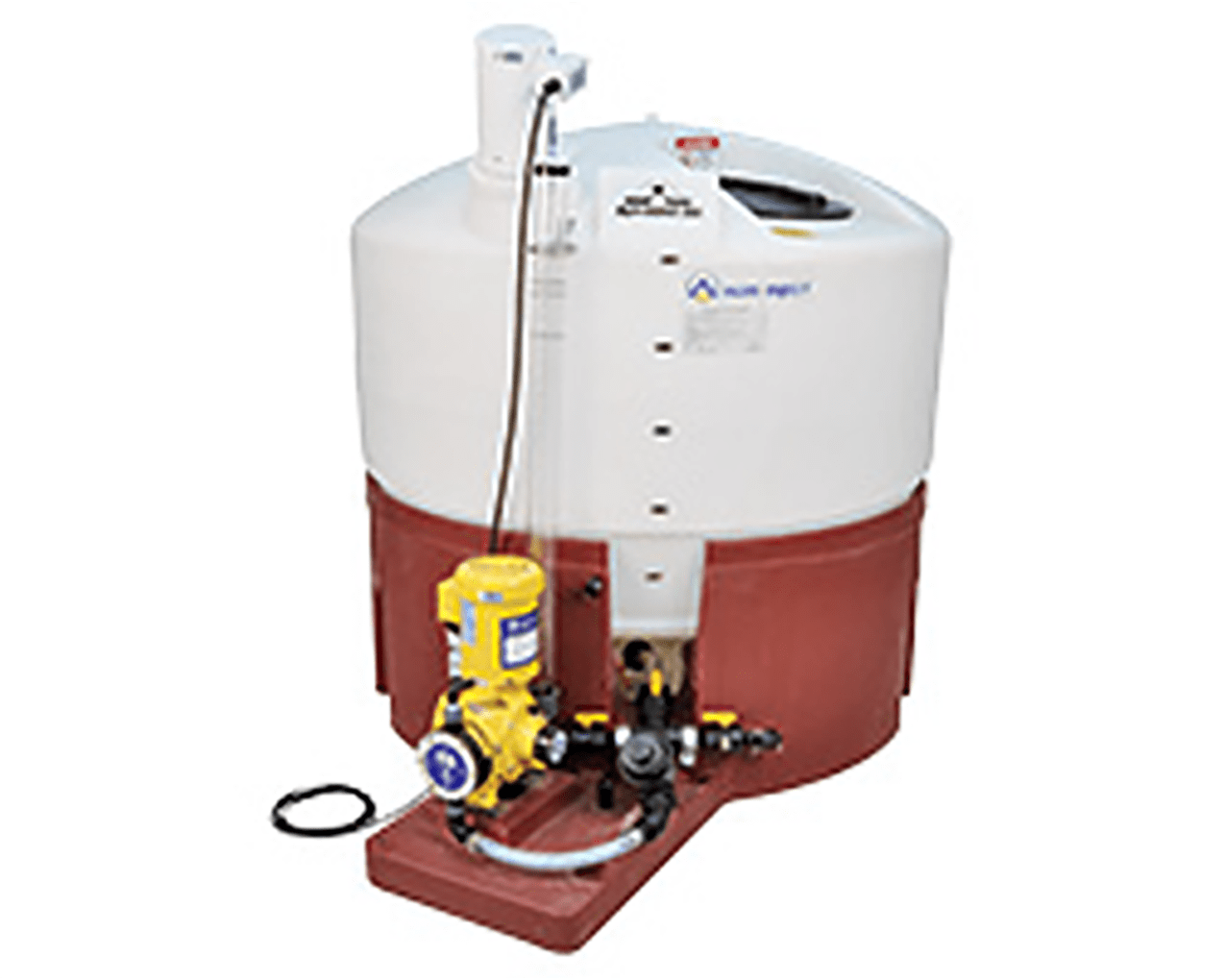

400 Gallon Large Capacity Injection System

Common Uses

Herbicides, Fumigants, High Rate Fungicides, Non-Solubles, Fertilizers

Features

400 gallon tank, Heavy duty support base

Specs/Options

Liquid Capacity: 400 US gallon
Dimensions: 65" wide x 85" long x 59" tall
Weight: 348 lbs. without pump

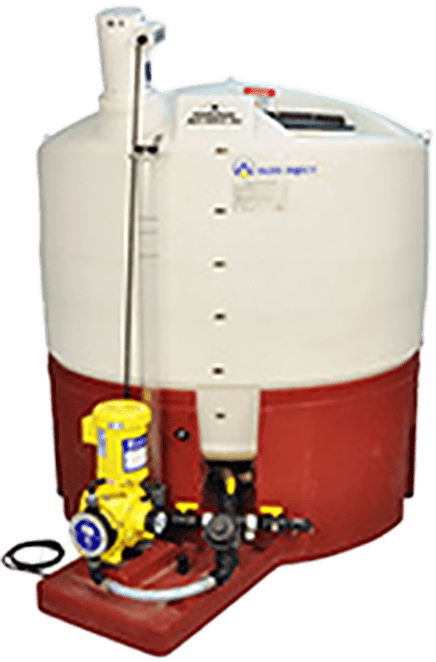

500 Gallon Large Capacity Injection System

Common Uses

Herbicides, Fumigants, High Rate Fungicides, Non-Solubles, Fertilizers

Features

500 gallon tank, Heavy duty support base

Specs/Options

Liquid Capacity: 500 US gallon
Dimensions: 65" wide x 85" long x 67" tall
Weight: 412 lbs. without pump

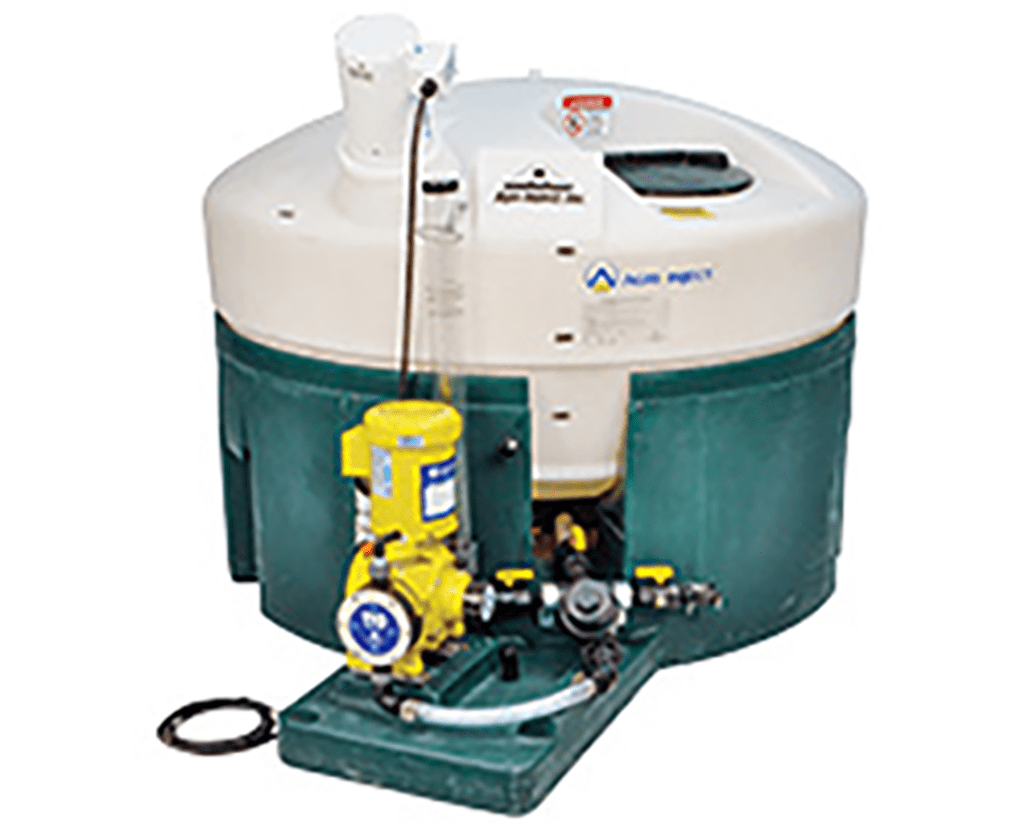

500 Gallon Large Capacity Injection System

Common Uses

Herbicides, Fumigants, High Rate Fungicides, Non-Solubles, Fertilizers

Features

600 gallon tank, Heavy duty support base

Specs/Options

Liquid Capacity: 600 US gallon
Dimensions: 65" wide x 85" long x 74" tall
Weight: 435 lbs. without pump

Locate a Dealer!

Agri-Inject products are distributed globally through an authorized dealer network. Each dealer has a solid reputation for responsive service and technical support. When you’re irrigating, you can’t afford to wait for answers. You’ll find the support you need from Agri-Inject is just around the corner.

Comparison Sheets Coming Soon
